05 Product Range
GPANEL 102 Strip Ceiling
GPANEL 102 is a premium colour-coated aluminium or PPGL strip ceiling system for interior and exterior commercial, institutional, and residential applications.
PRODUCT DESCRIPTION
GPANEL 102 strip ceiling is roll-formed from premium colour-coated aluminium or PPGL coils for excellent coating durability and structural strength. Its smooth finish creates a refined ceiling surface while providing long-lasting resistance to weathering and corrosion.
The versatile profile is suitable for interior and exterior applications in high-rise buildings, shopping malls, hotels, convention centres, showrooms, and other spaces that require a modern architectural ceiling.
FEATURES
- Premium colour-coated aluminium or PPGL construction
- Smooth, refined finish for modern interior and exterior ceilings
- Long-lasting resistance to weathering and corrosion
- Suitable for commercial, institutional, and residential applications
- Designed to enhance acoustic performance and visual comfort

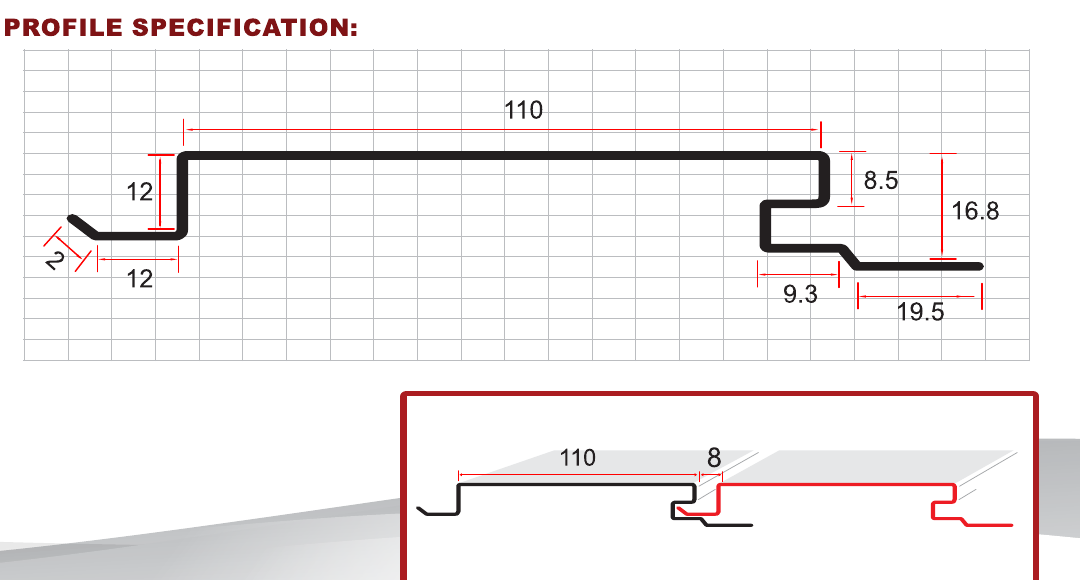

PROFILE SPECIFICATION
MATERIAL SPECIFICATION
The PPGL option is manufactured from high-quality steel coated with Galvalume, a premium alloy composed of 55% aluminium, 43.5% zinc, and 1.5% silicon. This coating provides strong corrosion resistance, heat reflectivity, durability, and long-term reliability in demanding environments.
| Substrate | Grade of Steel | BMT | TCT | Effective Cover Width | Weight (kg/m2) |
Rib Depth |
|---|---|---|---|---|---|---|
| AZ150 | 550 MPa | 0.42mm | 0.48mm | 102mm | 1.61 kg/m2 | 14mm |
| AZ150 | 550 MPa | 0.48mm | 0.53mm | 102mm | 1.82 kg/m2 | 14mm |

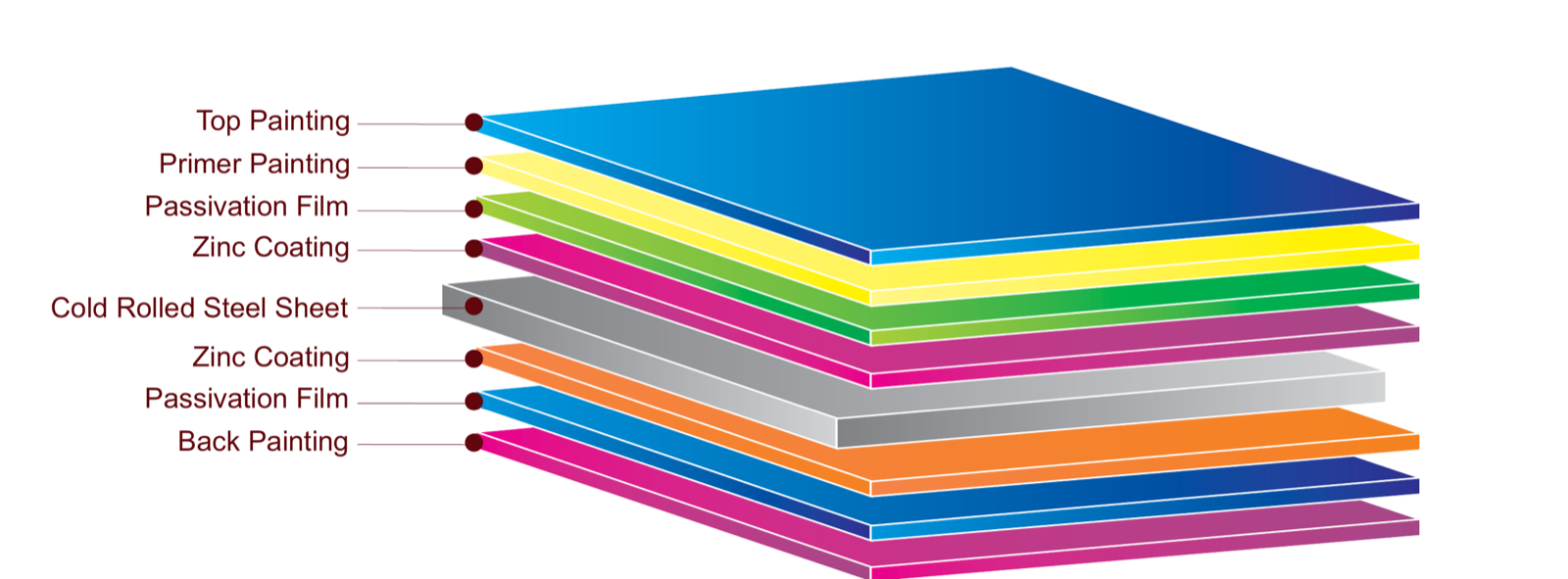

COATING SYSTEM
COLOUR SELECTION

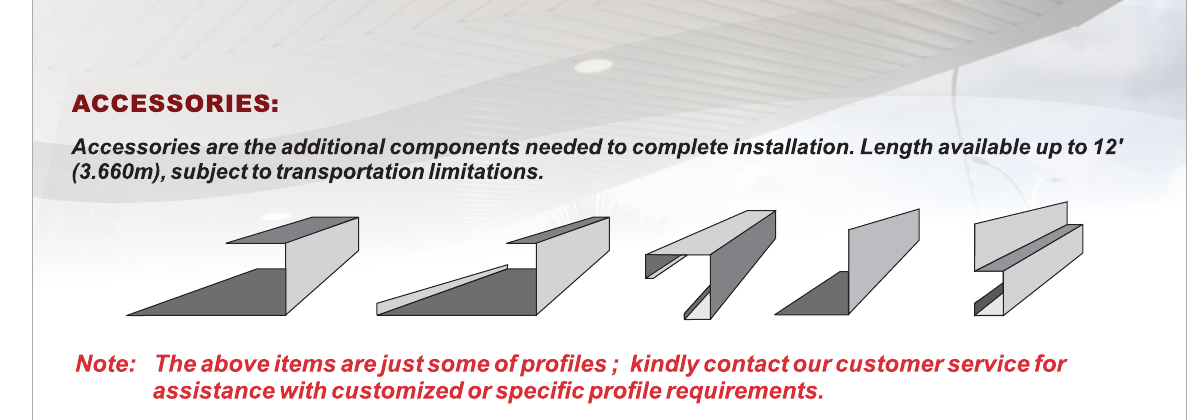

ACCESSORIES

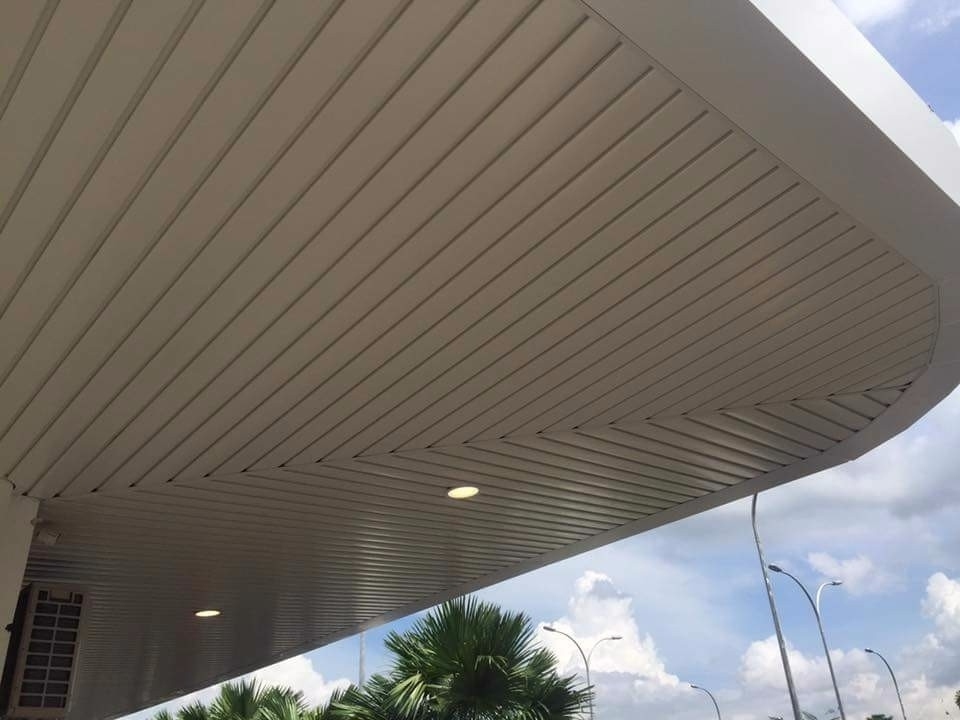

GALLERY
