GDEK Steel Roof Deck

GDEK logo

PRODUCT DESCRIPTION

JCH Roofing: JCH metal roofing is manufactured with the most advanced technology and it is roll formed in standard 0.28mm - 0.48mm TCT. When used as wall cladding or fencing, the trapezoidal ribs can be run horizontally or vertically by cirtue of its light weight and great spanning capacity, roofing for new homes, homes extensions, carpots, garages, covered patios, fencing and fascia and facade work.

GDEK Steel Roof Deck

SECTIONAL DIMENSION

GDEK Steel Roof Deck dimension

SPECIFICATIONS

SUBSTRATE MINIMUM YIELD STRENGTH (MPA) BASE METAL THICKNESS (MM) TOTAL COATED THICKNESS (MM) EFFECTIVE WIDTH COVER (MM) WEIGHT PER-SQUARE (KG/M2) DEEP OF RIB (MM) MINIMUM SLOPE (DEGREE) PRE-PAINTED
AZ150 550 0.35 0.41 762 3.46 25 3 Available
AZ150 550 0.38 0.46 762 4.40 25 3 Available
AZ150 550 0.42 0.48 762 5.04 25 3 Available

COATING

Different steels specifications for painted and unpainted also available on request. Total Coated Thickeness values are nominal only.

SLOPE

The recommended minumum slope is 3 degree. The amount of water that must be shed increases with the length of the roof. Therefore,to avoid possible back up of water in severe wind conditions, the recommended roof length should beconsidered as maximum for a given roof slope and rainfall rate.

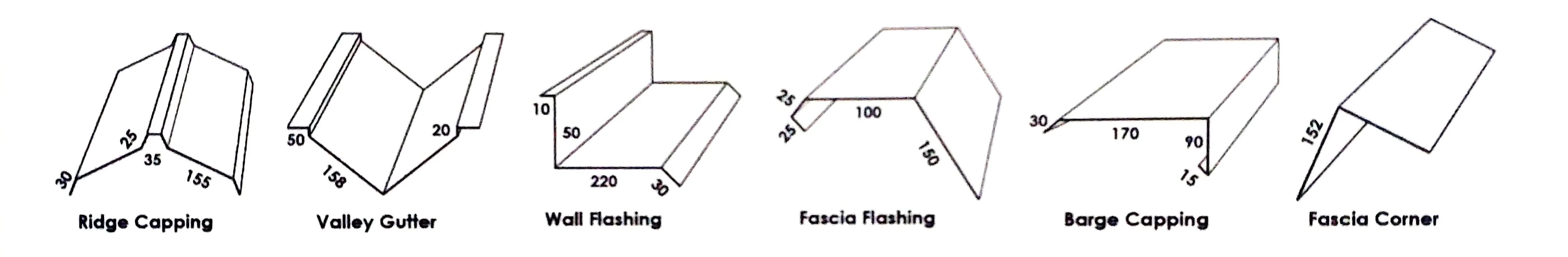

ACCESSORIES

Accessories are available to match GDek Profile.

GDEK Steel Roof Deck accessories

RECOMMENDED MAXIMUN SUPPORT SPACING (MM)

BASE METAL THICKNESS (MM) WIDTH COVER (MM) ROOF (SPAN) WALL (SPAN) FREE CANTILEVER
SINGLE END INTERNAL SINGLE END INTERNAL
0.35 762 900 900 1270 1650 1650 1650 300
0.38 762 1200 1350 1700 1500 1650 2000 300
0.42 762 1350 1500 1850 1650 1850 2000 300

WARRANTY

Warranty subject to application and eligibility criteria up for 25 years. There are various factors that will determine whether a building is eligible for a warranty. Such factors include, but are not limited to, product selection, environmental influences, manufacturing specifications and product specific requirements.
